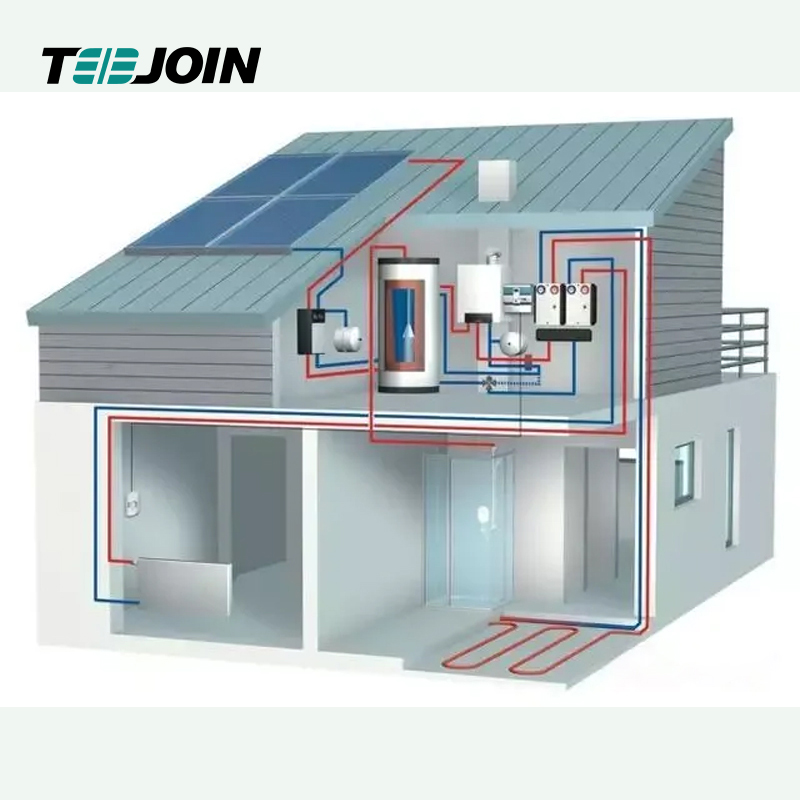

Solar gas water heater, comprehensive utilization, used for heating in winter and providing domestic hot water.

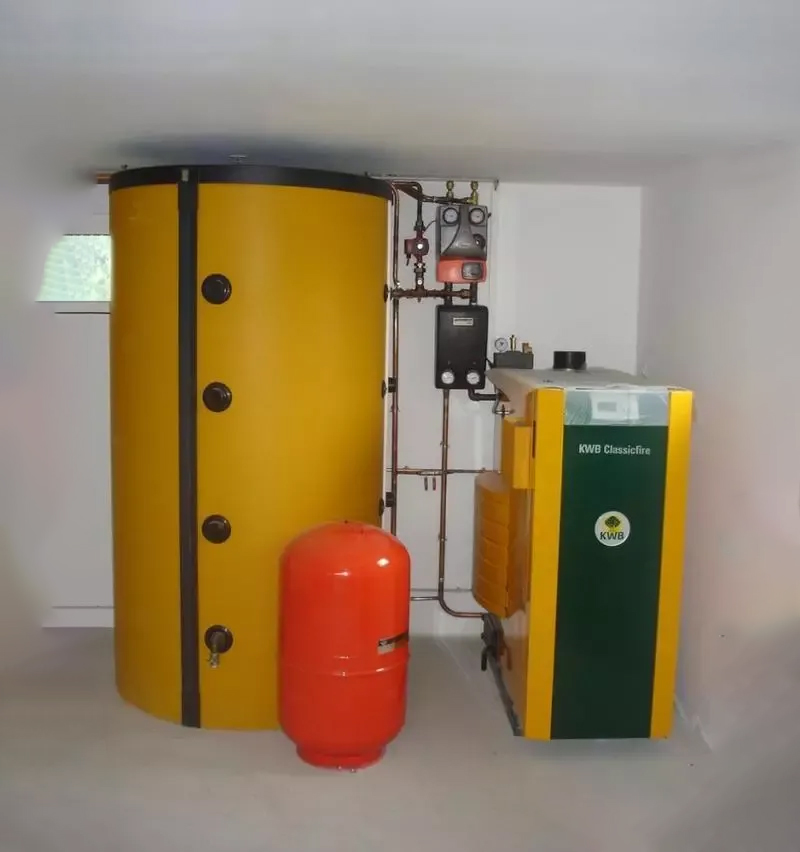

Inside the equipment room, wall-mounted gas water heaters, other forms of hot water boilers, heat exchange hot water storage tanks, integrated use, a glimpse of the site.

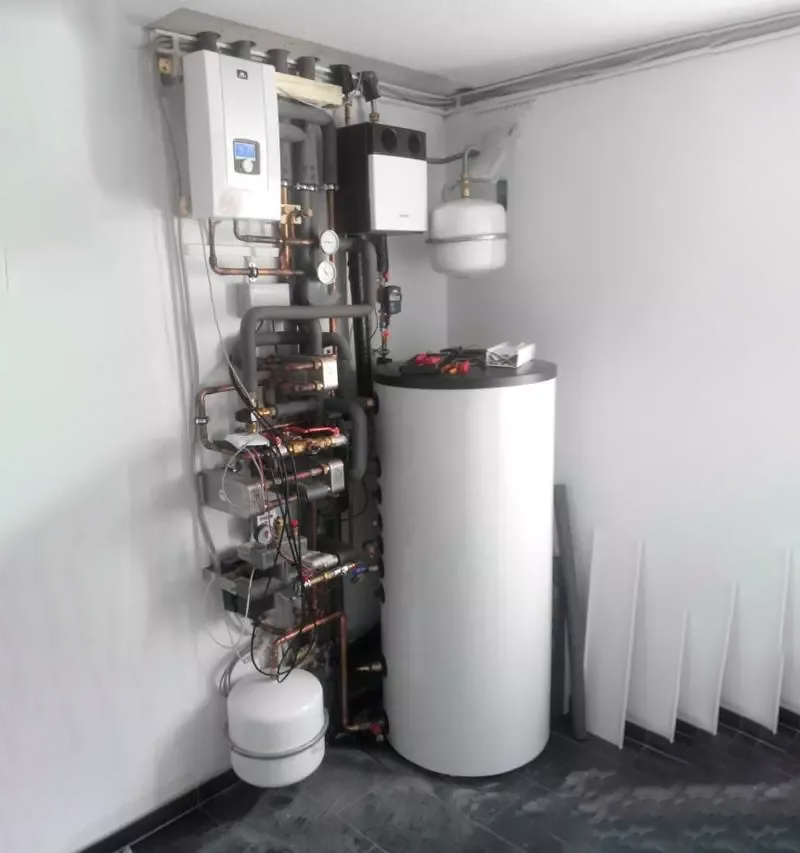

In the picture, from left to right, the "cluster tray" entering the room (including: power cable - thick black line, water - connected with water meter and preliminary filter, gas --(color change line, communication cable - thin black line, etc.); dual line controller; heat exchange heat exchange hot water storage tank (gray and white erected cylinder); pressure expansion tank in a separate system (small white tank in the upper center of the room); wall-mounted gas water heater (thicker white PVC chimney pipe connected directly to the outdoors); another pressure expansion tank in a separate system (small white tank in the upper middle of the room); another two-way line controller.

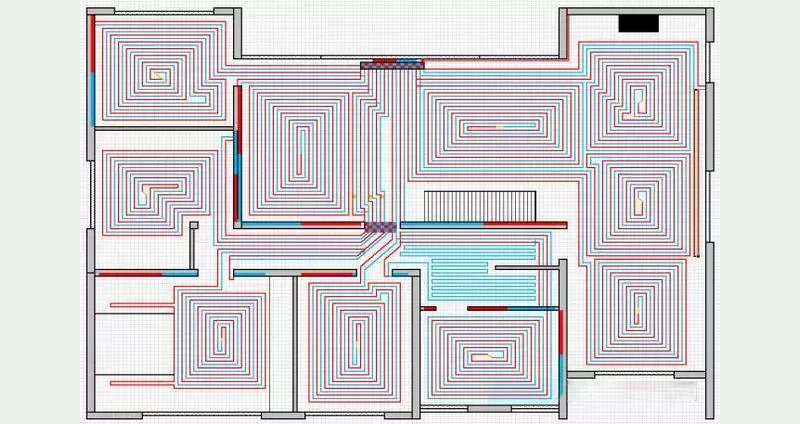

Solar system, floor heating system manifold, floor serpentine piping layout, schematic diagram.
