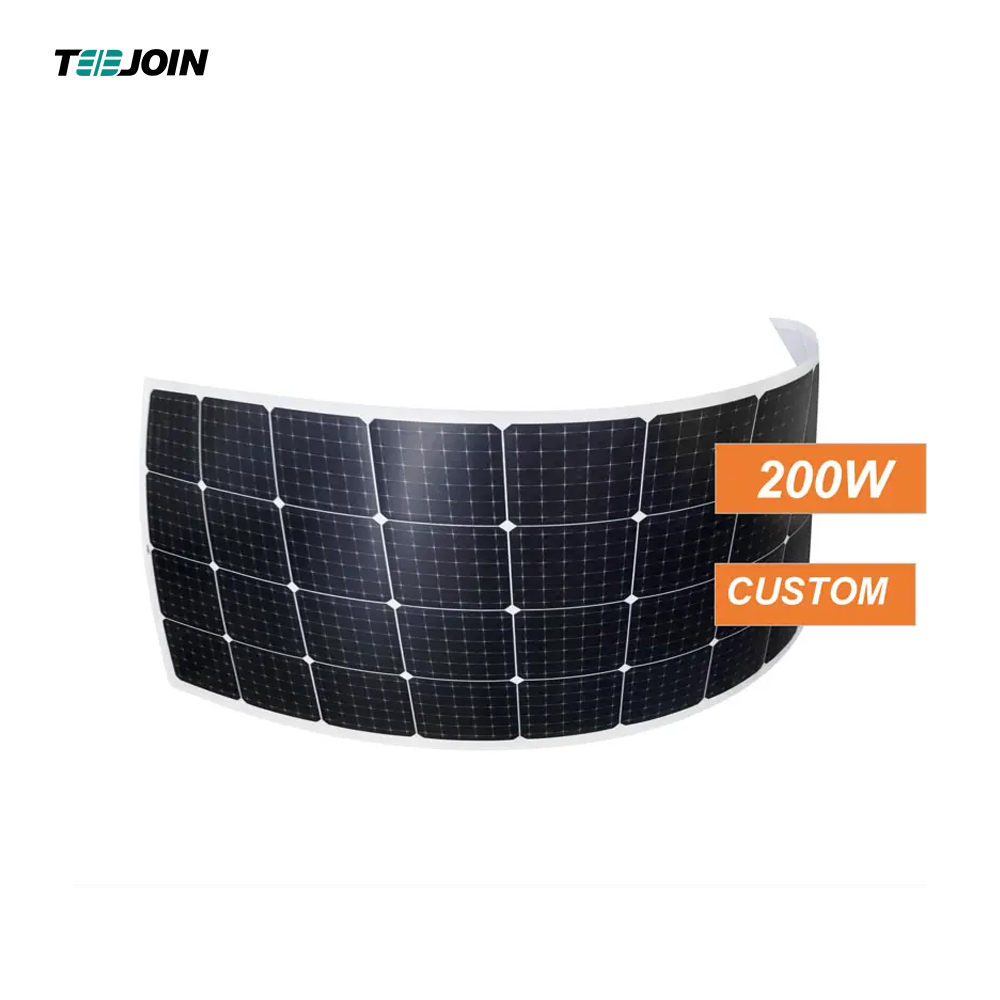

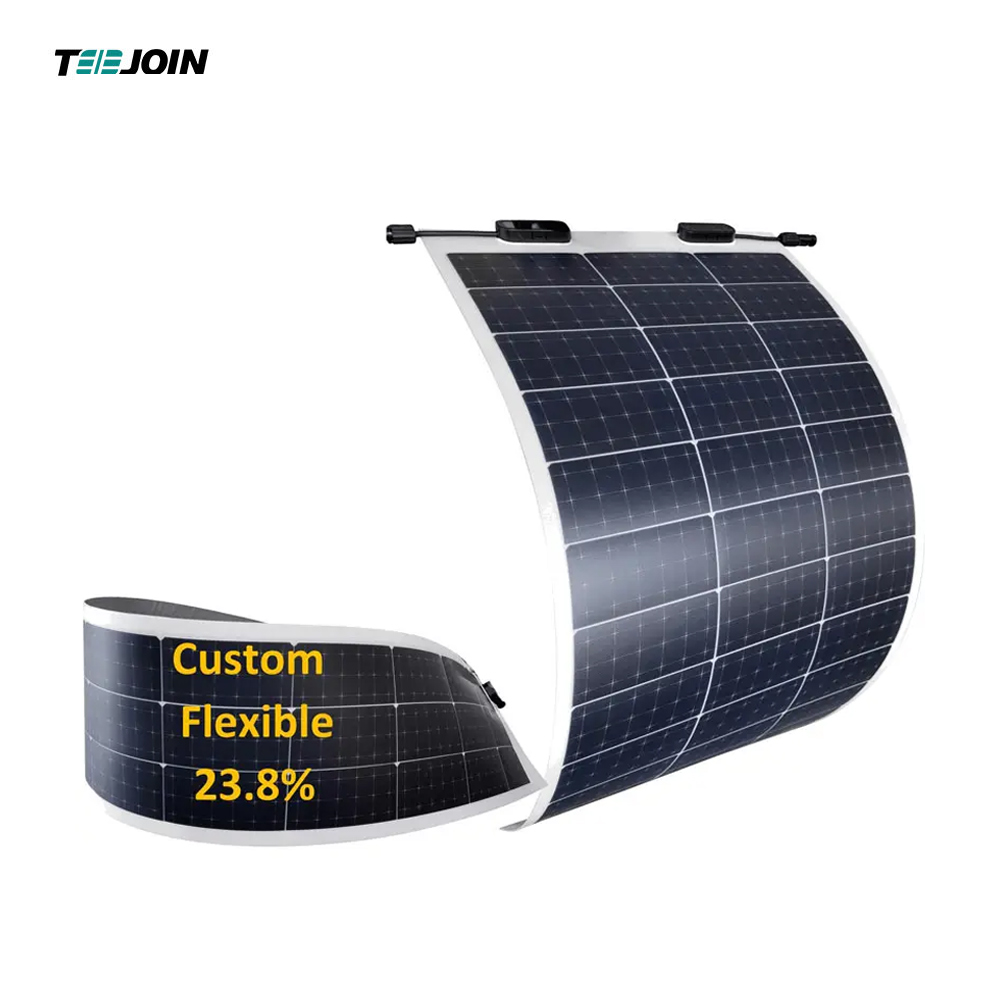

Solar PV Panels Flexible 100W 120W 250W 385W Custom
Brand teejoin
Product origin china, shenzheng
Delivery time 4-15 days
Supply capacity 100000000000
Solar PV Panels Flexible 100W 120W 250W 385W Custom Manufacturers & Factory. We accept OEM custom products all made in China.
Product Description
Flexible, and can be properly bent to use a wider range of applications.
High conversion efficiency, good output efficiency, low light effect, light weight, easy to carry, strong applicability.
With SUNPOWER chip, can be used for car ,home, boat, motorcycle, etc.
* It can bend 360 degrees
*Wider application scenarios
*Light weight,flexible,Common applications includes RV, camper, SUV, marine, Boat residential rooftop, curved service etc.
These new flexible solar panel use the latest technology to increase the efficiency(up to 20.5%) of these monocrystalline solar
panels.
flexible solar panel size | power | material | |
545*356mm | 35W | PET/ETFE | |
544*520MM | 50W | PET/ETFE | |
1065*520MM | 100W | PET/ETFE | |
1810*290MM | 85W | PET/ETFE | |
2010*368MM | 130W | PET/ETFE | |
1639*699MM | 220W | PET/ETFE | |
Specification
Temperature factory | Mechanical capacity | |||
Solar cell operating temperature（NMOT） | 43±2℃ | Size (L ×W × H) | 1190*540*2.5MM | |
Power temperature factory | -0.36%/℃ | Weight | 2kg | |
Voltage temperature factory | -0.28%/℃ | Back material | background（white） | |
Current temperature factory | 0.06%/℃ | Solar cell | 166*166mm | |
Operating condition | Encapsulation material | EVA | ||
Max system voltage | DC1000V(TUV) | frame | no | |
max fuse rated current | 15A | Junction box | no | |
Operating temperature range | -40℃～+85℃ | cable size | / | |
Maximum Power Pmax | 100W | |||
Maximum Power Voltage（Vmp） | 18V | |||
Maximum Power Current（Lmp） | 5.58A | |||
Open Circuit Voltage（Voc） | 21.24V | |||
Short circuit current（lsc） | 3.12A | |||
cell efficiency | 20.5% | |||
dimension | 1190*540*2.5MM | |||
weight | 2KG | |||
Guangdong Teejoin Solar Technology Co., Ltd | |||||
specification | Item name | flexible mono solar panel | Doc no. | SPP-10-TE-XXX | |
doc | SPPXXXNH12S | version no. | A/0 | ||
I-V curve | |||||
Irradiance I-V curve（SPP33NH12S） | Operating temperature I-V曲线（SPP33NH12S） | ||||
Company Profile
Guangdong TEEJOIN Solar Power Technology Co. is a professional solar power manufacturer in China. We have been in solar power
field for more than15 years, built complete production chain of manufacturing all kindsmono & poly crystalline glass solar panels,
fordable & flexible panels, solar cells, on/off solar power system, Lithium storage battery, solar street light, solar application produ-
cts, support all kinds of OEM and ODM production. TEEJOIN has set up 5 factories as production group. TEEJOIN Solar Power Tech-
nology Company products have been certified with TUV, CE, ROHS,IEC61215, ISO9001, GCC, received a wide recognition and good
reputation from our clients. TEEJOIN is our brand go to the world go forward hand in hand together build cooperation relationship
and friendship with our customers and partners. Our team go into actions to encourage and advocate the people to use low-carbon
and energy saving products to protect our living environments.We have devoted professional technology team and production line
to service for all of the world according to the clients requirements to make the full satisfaction and green comfortable environment.
